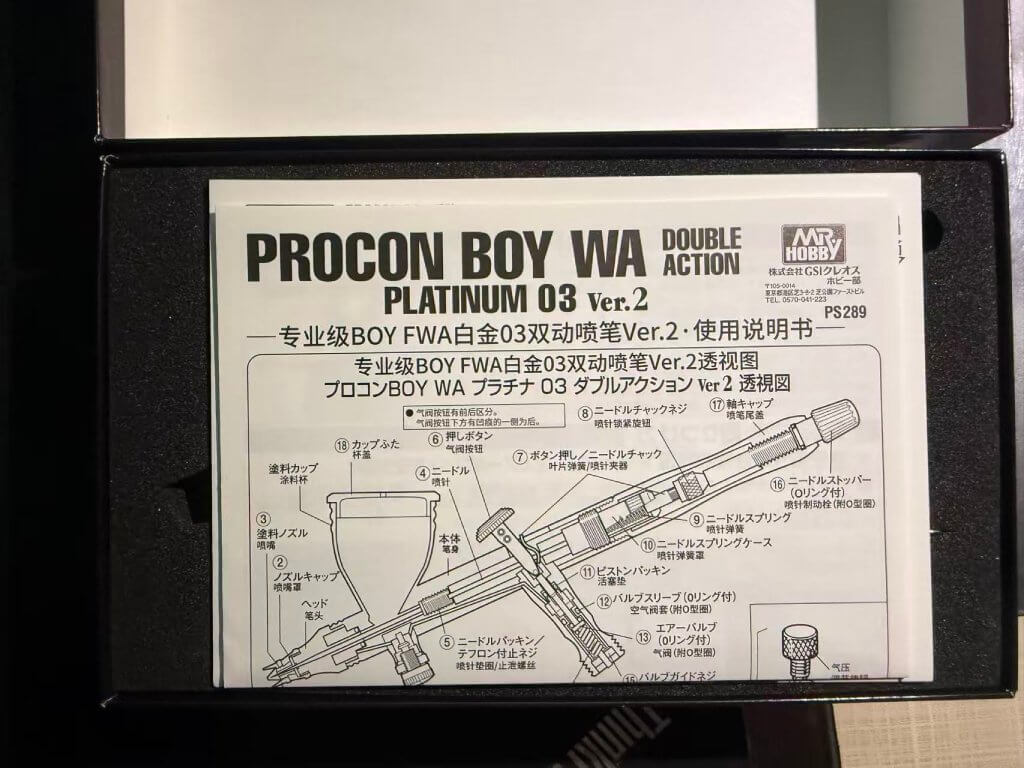

[PROTOCOL 003]:PS-289 Tactical Manual

[SUBJECT] PRECISION ATOMIZATION & COATING DOCTRINE.

---

I. PRE-ACTIVATION RITES: THE ACADEMY SPEC

In our Academy, preparation dictates 90% of the combat outcome. Failure to prepare is a vow for defeat.

1. Chamber Pressurization: * Academy Standard: Calibrate supply pressure to a baseline of 0.12 MPa.
   • Tactical Note: Pressures exceeding 0.18 MPa induce “Dry Spray”; pressures below 0.08 MPa result in coarse, erratic grain.
2. The Thinning Ratio: * Doctrine: Adhere to the 1:2.5 (Paint to Thinner) Golden Ratio. Utilize Mr. Color Leveling Thinner to retard drying time, ensuring the paint film settles with mirror-like leveling.
3. Hangar Air Quality: Activate the negative-pressure extraction system. Dust is a heretical impurity loathed by the Machine Spirit.

---

II. CORE CONTROL LOGIC: ADVANCED MANEUVERS

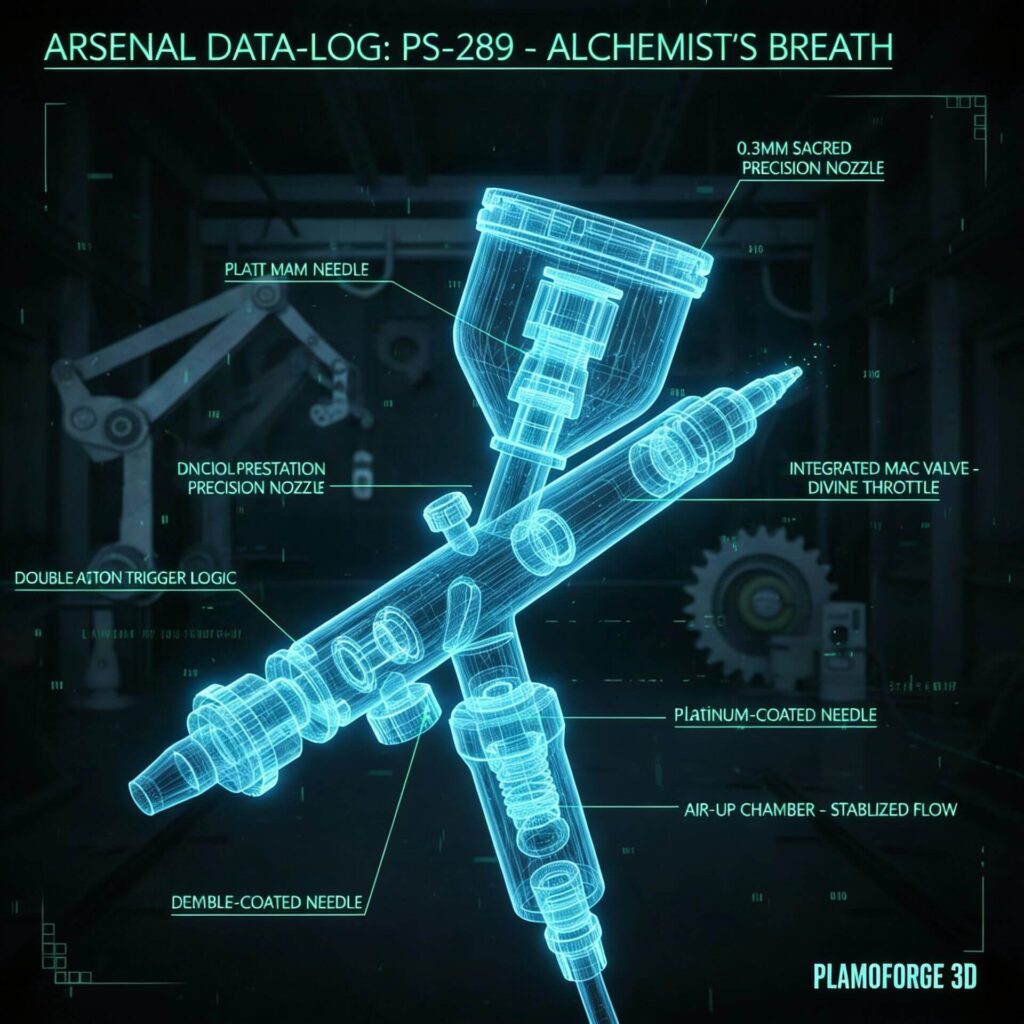

1. The Divine Throttle (MAC Valve) – Airflow Micro-management

• Precision Mode: Rotate the valve to a “Near-Closed” state. In this mode, even with the compressor at full load, the pressure at the nozzle drops to a whisper. Combined with the 0.3mm Needle, this allows for “Hairline Camouflage” patterns.
• Rapid Coating: Open the valve to maximum. This delivers high-volume output optimized for reconstructing the vast, curved surfaces of an Iron Ball (Ball Type).

2. Needle Stroke Management

• Limit Settings: Adjust the Preset Handle (rear knob) until the trigger travel is restricted to 20%. This acts as a safety insurance during “Pre-shading” operations, preventing an accidental flood of pigment from obliterating your shadow details.

---

III. COMBAT PROCEDURES: UNIT-SPECIFIC TACTICS

Mission A: The Iron Ball “Rusty Titan” (Heavy Industrial Texture)

• Objective: To achieve a weathered, cast-iron texture on armored surfaces.
• Tactical Execution: 1. Open the MAC valve fully for the Base Coat saturation.2. Tighten the MAC valve, dropping effective pressure to 0.05 MPa.3. Utilize “Burst-firing” pulses to create stippled color variations, simulating thermal oxidation and atmospheric friction.

Mission B: Haro “Neon Sentinel” (High-Gloss Finish)

• Objective: To create an ultra-smooth, high-sheen spherical surface.
• Tactical Execution: 1. Execute a “Wet Coat” maneuver with the PS-289.2. Increase trigger pull-back while maintaining a constant 5cm distance from the target.3. Ensure the paint appears visually “moist” without sagging. This is the final trial of an Artisan’s steady hand.

---

IV. PURIFICATION: THE “60-SECOND” RESET

Academy regulations require every cadet to complete a color-swap purification within 60 seconds.

1. Purge the Cup: Decant residual pigment and inject 5ml of high-potency solvent.
2. Agitated Backflow: Seal the nozzle cap with a gloved finger and depress the trigger. Use the resulting “Pneumatic Storm” to pulverize any remaining pigment within the chamber.
3. Needle Sanctity: * Instruction: Extract the Needle and inspect the tip for “Hooking” (dried paint buildup).
   • Pro-Tip: Use a microfiber cloth dampened with solvent. Wipe in a single direction from the shank to the tip. Never wipe side-to-side, as this compromises the needle’s micron-level concentricity.

---

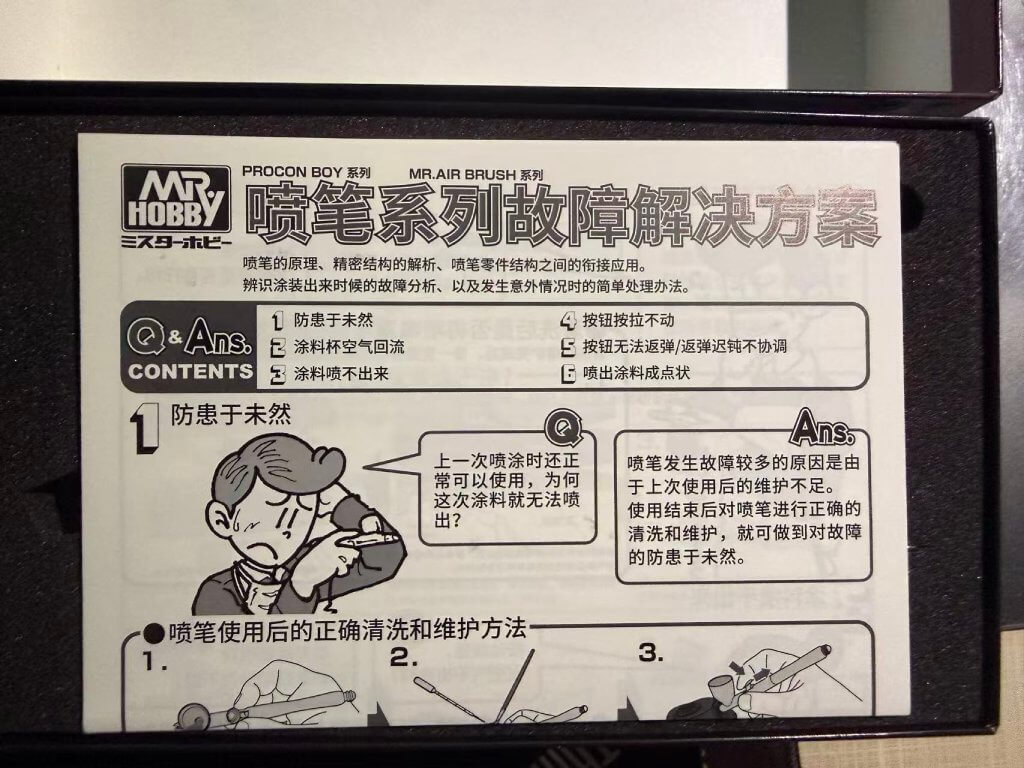

TROUBLESHOOTING (Appeasing the Machine Spirit)

Symptom	Diagnosis	Sanctification (Solution)
Spidering	Excessive thinning or distance too close	Reduce air pressure or increase standoff distance.
Dry Tip	Calcified pigment on the needle	Temporarily remove the needle cap; clean tip with a solvent swab.
Bubbling in Cup	Nozzle loose or seal degradation	Tighten the Nozzle or replace the O-ring seals.
Splattering	Pigment flow cut after airflow	Enforce Protocol: Air on first, Air off last.

---

PLAMOFORGE 3D FINAL DISPOSITION

“You do not fight the machine; you become the machine’s breath. The PS-289 is an extension of your own nervous system.”

[SYSTEM STATUS]: UPLOAD_DATA
[PROCESSING]: ………………………. DONE
[SERVER]: ACADEMY CLOUD SYNC SUCCESSFUL
[VERIFYING]: MACHINE SPIRIT ACCLAIMED
[TIMESTAMP]: 2026.01.24.04:05:00
[SIGN-OFF]: FOR THE EMPEROR

---

“In the cold logic of the machine, we find the heat of victory.”

[END PROTOCOL 003]
